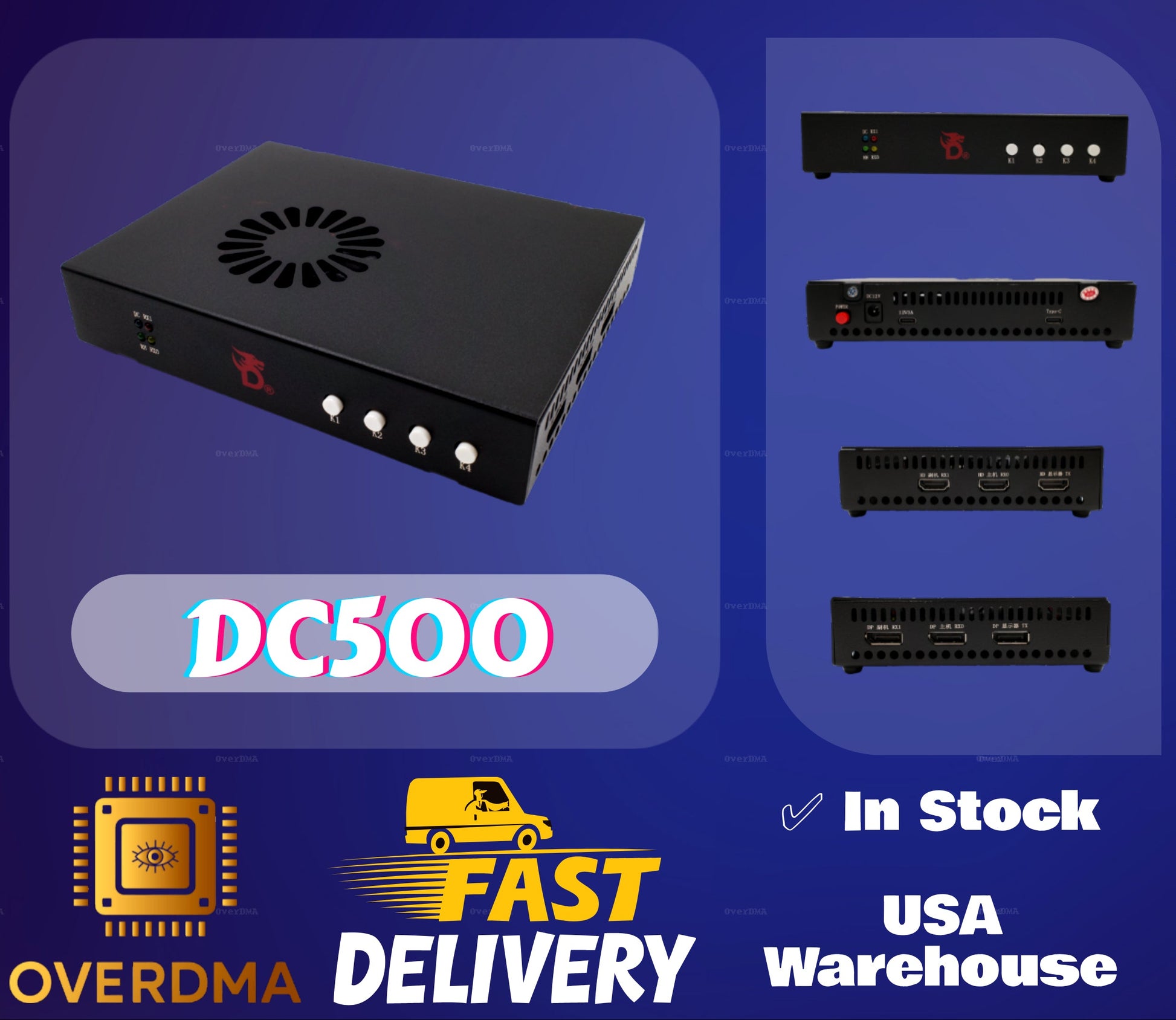

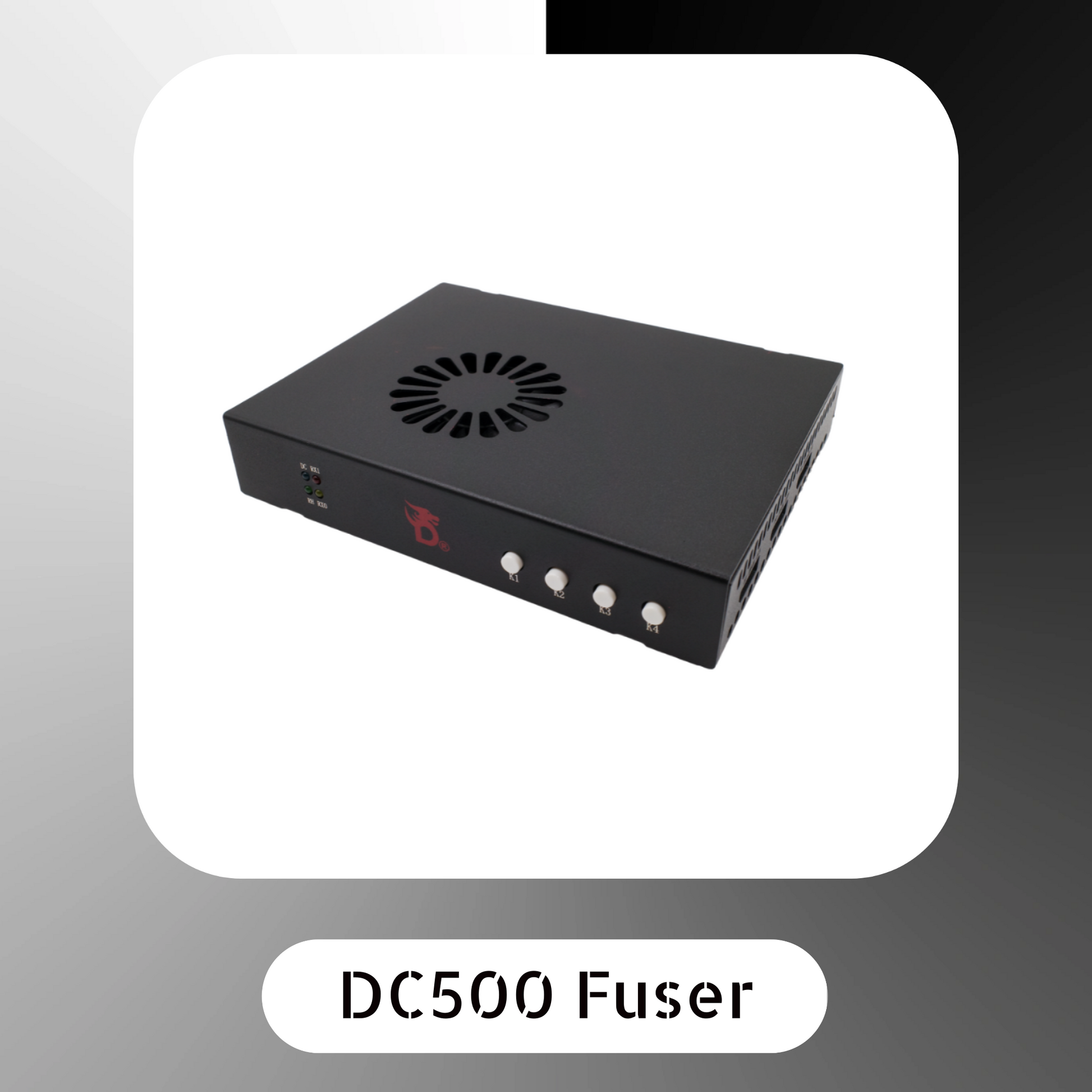

DC500 4K Fuser

The DC500 is a professional video fusion device for dual-PC DMA setups. It overlays your second PC's output directly on your main monitor in real time — at refresh rates no other fuser in its class can match.

Why the DC500

• Premium materials, true lossless quality — Built with RTX 4090-grade PCB materials and brand-new imported chips. Even when DP runs in 6-bit mode at ultra-high refresh rates, visuals are virtually indistinguishable from 8-bit.
• Dual interface: HDMI 2.1 + DP 1.4 — Authentic frame rates and visibly superior clarity. No false frames, no hidden compression.
• Plug & play — Works with 95%+ of monitors on the market. Ultrawide supported. No extra setup required.

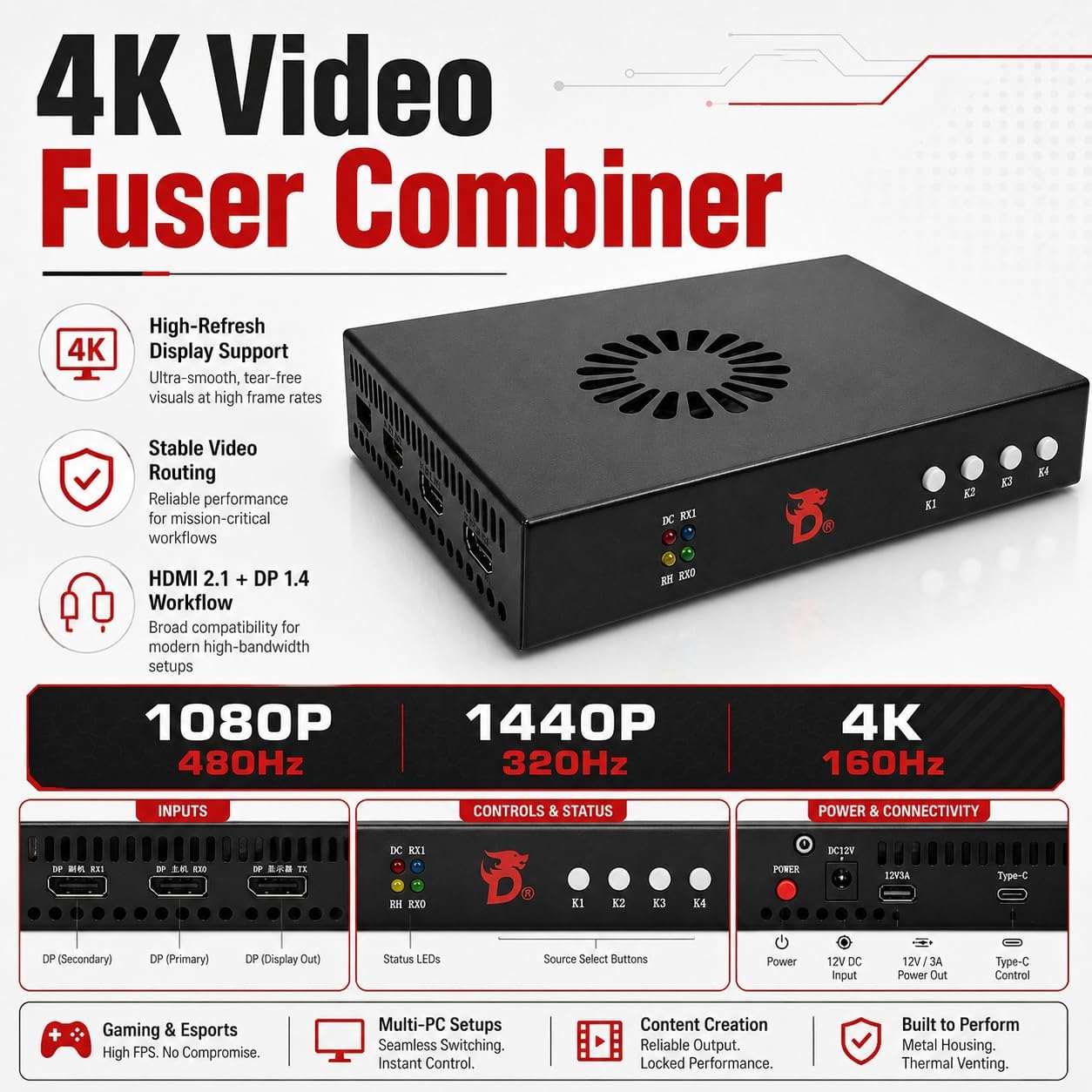

Supported Resolutions & Refresh Rates

DP 1.4: 1920×1080 @ 480Hz · 2560×1440 @ 320Hz · 3840×2160 @ 160Hz

HDMI 2.1: 1920×1080 @ 540Hz · 2560×1440 @ 355Hz · 3840×2160 @ 158Hz

Backward compatible with lower refresh rates.

Requirements

• DP 1.4 mode: Both PCs need Nvidia 10 series / AMD RX 500 series or newer
• HDMI 2.1 mode: GPU RTX 3060 / RX 6500XT or better; monitor with full-bandwidth HDMI 2.1 FRL 48Gbps
• Second PC CPU: 6 threads or more

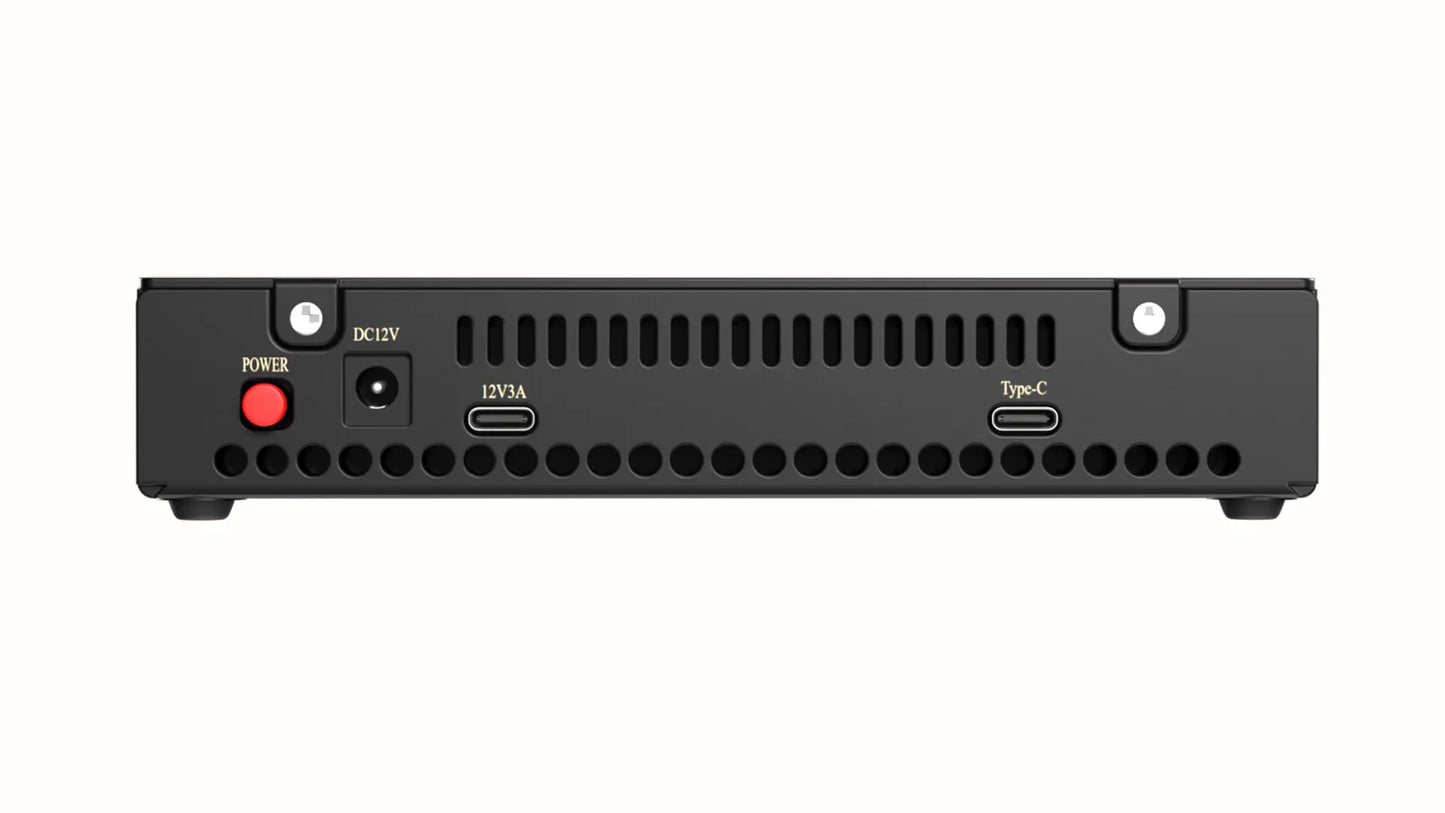

What's in the Box

• 1× DC500 Fusion Device
• 1× 12V 2A Power Adapter
• 3× DP Cables

Shipping

Fast shipping from the USA. Setup support included via Discord ticket in English and Spanish.

FAQ

DC500 vs DC505 — which one?

Both reach ultra-high refresh rates. The DC505 ($599) adds an integrated capture card, custom EDID injection, adjustable chroma keying and front-panel controls. If you stream or record, or need EDID control for monitor compatibility, go with the DC505.

DC500 vs GODLIKE 4K Pro — which one do I need?

The GODLIKE 4K Pro ($399) tops out at 1080p 360Hz / 4K 120Hz. The DC500 goes further: 1080p 480–540Hz and 4K 158–160Hz, with both HDMI 2.1 and DP 1.4. If you run a 480Hz+ monitor or want maximum headroom, the DC500 is the one.

Does it work with my monitor?

If your monitor supports these resolutions and refresh rates over DP 1.4 or full-bandwidth HDMI 2.1, it will work. Ultrawide monitors are supported.

Do you help with installation?

Yes — free setup assistance via our Discord support team, in English and Spanish. Professional 1:1 remote installation is also available.

Looking for a budget option?

The GODLIKE 10th Gen HDMI Fuser ($145) covers 1080p 240Hz / 4K 60Hz setups and includes ultrawide support.

Fuser DC500 4K para DMA — Envíos desde USA

El DC500 es el fuser 4K de alto refresco para setups DMA de dos PCs: 1080p a 480Hz, 1440p a 320Hz y 4K a 160Hz por DisplayPort 1.4, o hasta 540Hz por HDMI 2.1. Compatible con más del 95% de los monitores, plug and play, con soporte en español por Discord.
